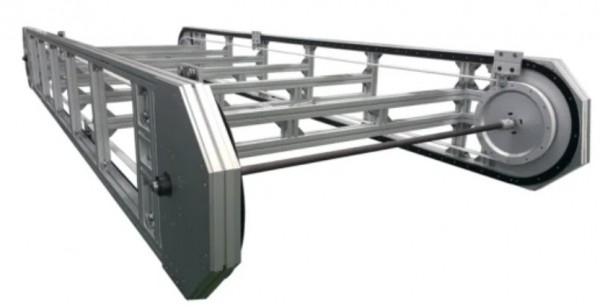

Vertical Installation - Chain - Ring Guide Conveyor System
Horizontally installed - Chain type - Circular guide rail conveying system
- Max. Load /kg： ≤50KG
- property： High load / Large spacing / Long threadt
- Applications：Withstand heavy loads, sectional disassembly for easy maintenance, unrestricted length.
가이드 레일 컨베이어 시스템
shape | rectangle/ellipse | ||
Conveyor medium | 벨트 | chain | linkage rod |
Conveyor length /m | ≤5m | ≤80m | ≤10m |
Conveyor width/m | ≤5m | ≤10m | ≤2m |
diameter | 159-1501mm | 159-1501mm | 159-1501mm |
Slider spacing | 100-3000mm | 100-3000mm | 100-3000mm |
travel time | ≥0.8s | ≥0.8s | ≥0.1s |
Secondary positioning time | ≥0.3s | ≥0.3s | ≥0.3s |
Load of a single slider/kg | ≤20kg | ≤20kg | ≤20kg |
Repeat positioning accuracy | ±0.05mm（Positioning mechanism assembly ） ±0.10mm（Without positioning mechanism） | ||
